Combo Roll Forming Machine/Double Layer Roll Forming Machine

SALIENT FEATURES

One Combo Roll Forming Machine could produce two or three different products for PUF panels, bottom sheet, and top sheet.

Structure of Combo Roll Forming Machine

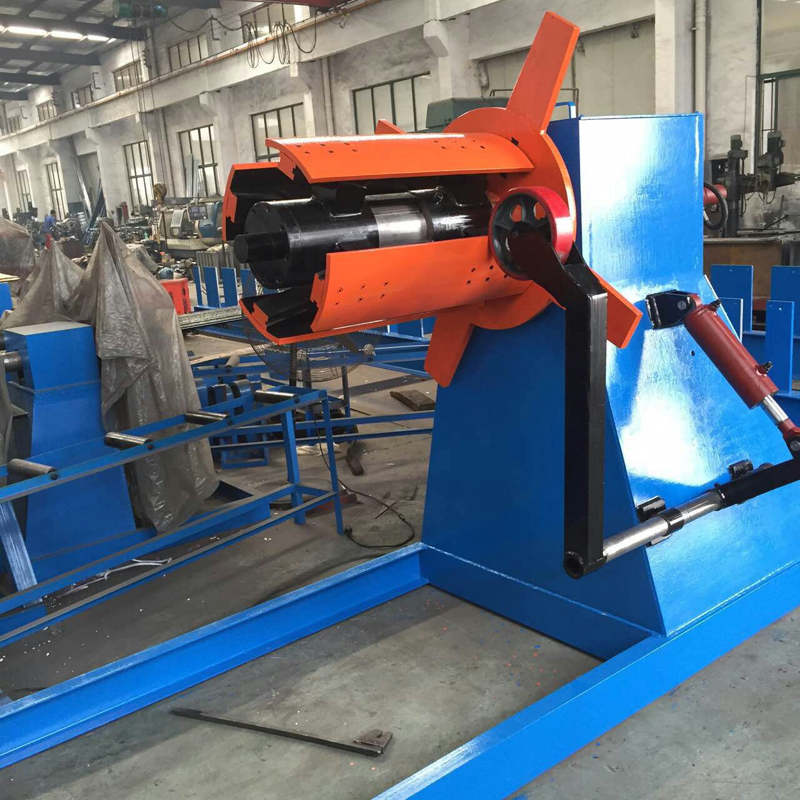

This roll forming machine consists of 10 tons auto decoiler, forming machine, hydraulic shear, electric controller, and stacker.

Working Process of Combo Roll Forming Machine/Double Layer Roll Forming Machine

Coiler loading → feeding-in with guiding (metal sheet is guided into the first forming station) → rolling & forming → cutting → stacker running out

Production Line Sketch of Combo Roll Forming Machine/Double Layer Roll Forming Machine
Combo Roll Forming Machine Double Layer Roll Forming Machine1

Combo Roll Forming Machine Double Layer Roll Forming Machine1

Profile Drawing of Combo Roll Forming Machine/Double Layer Roll Forming Machine

Upper

Combo Roll Forming Machine Double Layer Roll Forming Machine2

Lower

Combo Roll Forming Machine Double Layer Roll Forming Machine3

Combo Roll Forming Machine Double Layer Roll Forming Machine4

Combo Roll Forming Machine Double Layer Roll Forming Machine5

TECHNICAL PARAMETERS

Specifications of Combo Roll Forming Machine

Product Name	Item	Description
Combo Roll Forming Machine	Production Material	Thickness(0.3mm-0.8mm), yield strength≤G350MPa
	Forming speed	10-15 m/min
	Number of stations	Upper layer: 10 stations
	Number of stations	Lower layer: 18 stations
	Roller material	GCr15 with heat treatment and hard chrome-plated HRC 58-62
	Shaft diameter	76mm
	Shaft material	High-quality steel 45 quenched and tempered after finishing treatment
	Main motor power	7.5 kw
	Power of hydraulic station	3.0 kw
	Electronic controlling system	Full-frequency PLC controlling system
	Cutting	Cutting after forming with hydraulic driving
	Material of cutting blade	Cr12 quenched
