IBR Roof Sheet Roll Forming Machine

Contact Now

SALIENT FEATURES

Technological Process of IBR Roof Sheet Roll Forming Machine

Decoiler — feeding — guide --- roll forming ---- cut to length — run out table

Description of IBR Roof Sheet Roll Forming Machine

We have professional engineering team and can use the Copra Software skillfully to design the forming diagram according to the profile drawing.
We adopt the heavy stands to make the machine robust and strong.
We adopt pneumatic saw flying cut to shear all profiles
The step beams is popularly used in the project of supermarket construction in North America and
South America e.g Mexico, Argentina, Chile and so on
We exported the step beam machine to Mexico and all of the profiles produced can meet the customer's requirements
We also can supply accessories parts machine together with rack machine, crossbar machine, base machine etc

Composition of IBR Roof Sheet Roll Forming Machine

Manual Un coiler	1 unit
Control panel	1 unit

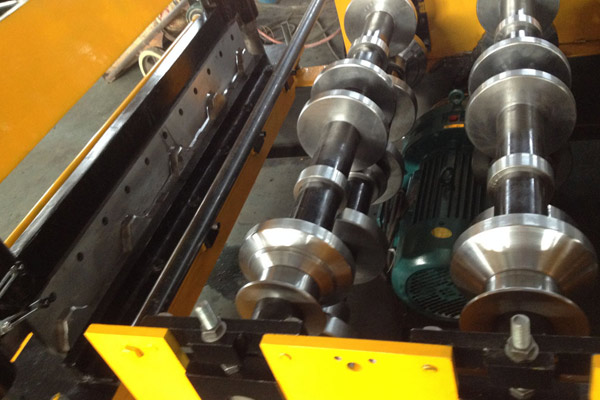

Roll forming main machine	1 unit
Cutting Device	1 unit
Manual out table	2 unit

Reference IBR Roof Sheet Drawing

Production Line Sketch
IBR Roof Sheet Roll Forming Machine2

Applications
IBR Roofing Sheet; IBR Sheet; IBR Roofing Sheet; Metal roof; Steel roof; Metal roof wall panel; Steel roof wall panel; Metal roofing sheet; Steel roofing sheet; Metal roof panel; Steel roof panel; Beams; C beams;
Step beams in the supermarket

Competitive Advantage
One roll forming machine only can produce one profile.
We can manufacture as per customer provided drawings with the specification or real objects of sectional materials,
custom roll forming machine is welcome.

More information about steel roof panel profiles, Pls contact with us!

TECHNICAL PARAMETERS

Specifications of IBR Roof Sheet Roll Forming Machine

No.	Item	Description
1.	Coil width	Depend on your profiles
2.	Working speed	12-15m/min
3.	Roll station	about 16 - 24 stations
4.	Material of roller	Grade 45 steel, polished and coated with chrome
5.	Material of main shaft	45﹟ steel
6	Diameter roller	70mm
7.	Main power	7.5KW
8.	Forming thickness	1.0mm zinc and color steel, 250Mpa-G550MPA
9.	Transmission	by single Chains 1.5inch
10.	Feeding and guide	Surface polished and coated with chrome
11.	Machine drive parts	Adopt protect cover
12.	Machine station	Adopt new station with chrome
13.	Size of main machine	7500x1500x1300(mm) L x W x H need 1x40GP container
14.	Weight	about 8000Kgs
15.	Color of machine	Blue ( or depend on customer's request)
16.	Machine legs	Four legs (made from metal) in 350mm
